ZXQ-5Q Fully Pneumatic Automatic Metallographic Mounting Press
*ZXQ-5Q intelligent type fully automatic mounting press is an advanced pneumatic water-cooled sample mounting equipment.

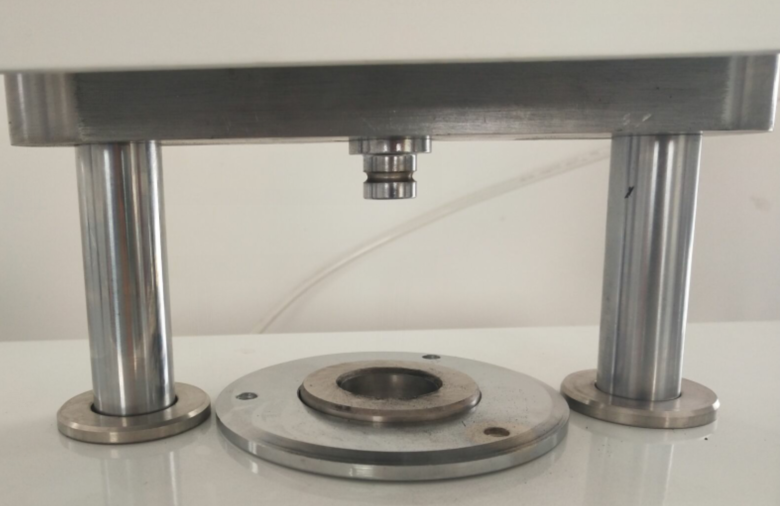

*The whole mounting process is controlled by preset program, which can realize one-click operation of heating, pressing, holding, cooling, unloading, and ejection of samples, no need to have operator on duty. *Different mould size can be chosen according to the actual situation;and replaceable steel mould model is optional.
* It features simple and intuitive touch screen interface, easy operation, stable and reliable working performance.
*When working, it is not necessary for operator to be on duty beside the machine.
| Mould Specification | φ22mm, φ30mm, φ45mm ( choose one) |
| Heater | 220V 1600W |
| TEMPERATURE RANGE: | 0~180℃ ( factory setting temperature:120℃) |
| Cooling method | Automatic water cooling |
| Overall Dimension | 380mm*350mm*420mm |
| Net Weight | 50Kg |
*The machine is equipped with smart digital display thermostat touch screen, PLC can control temperature automatically; the preset temperature and real-time temperature are both shown on the screen;
* The temperature sensor adopts thermoelectric couple, which has high sensitivity, high accuracy, high efficiency, easy to observe and operate.
*It is applicable to thermosetting and thermoplastic materials, such as electricity jade powder and Bakelite powder materials.
1.Automatic mounting
2.Automatic loading and unloading
3.Automatic temperature control
4.Automatic ejection of samples ( 10-12 minutes)
5.Rapid test process
6.Flexible time setting
7.Large touch screen display
8.Super quiet, safe and stable
9.Multiple working modes can be set according to different samples
