The Brinell hardness testing method is one of the most commonly used testing methods in metal hardness testing, and it is also the earliest testing method. It was first proposed by the Swedish JABrinell, so it is called Brinell hardness.
The Brinell hardness tester is mainly used for hardness determination of cast iron, steel, non-ferrous metals and soft alloys. The Brinell hardness test is a relatively accurate detection method, which can use a maximum test force of 3000kg and a 10mm ball. The indentation can accurately reflect the real hardness of coarse grain materials such as cast iron, cast steel, and forgings. The permanent indentation left after the test can be inspected repeatedly at any time. It is the largest detection method for indentation. It is not affected by the uneven composition of the workpiece or the sample structure, and can objectively reflect the comprehensive performance of the material.
Applications:
1.The Brinell hardness tester is used for Brinell hardness testing of forged steel, cast iron, non-ferrous metals, workpieces before heat treatment or after annealing,
2. It is mostly used for testing raw materials and semi-finished products. Due to the large indentation, it is not suitable for finished product testing.
Points to note when choosing a Brinell hardness tester:
Since the workpiece is thick or thin, different test forces will be used to match different diameters of indenters according to different workpieces to obtain more prepared test results.
Commonly used Brinell hardness tester test force:
62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf
Commonly used Brinell indenter diameters:
2.5mm, 5mm, 10mm ball indenter
In the Brinell hardness test, it is required to use the same test force and the same diameter indenter to obtain the same Brinell resistance value, and the Brinell hardness at this time is comparable.

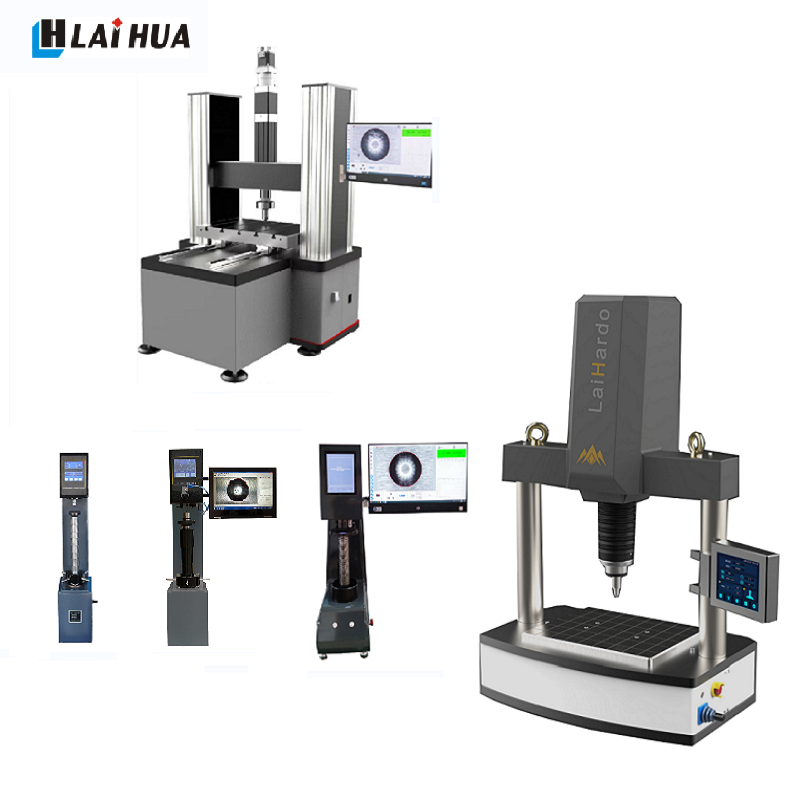

The Brinell hardness testers produced by Shandong Shancai Testing Instrument Co., Ltd./Laizhou Laihua Testing Instrument Factory are divided into the following categories according to the degree of automation:
1 Weight load Brinell hardness tester HB-3000B
2 Electronic load Brinell hardness tester HB-3000C, MHB-3000
3 Digital Brinell Hardness Tester: HBS-3000
4 Brinell hardness testers with measuring systems: HBST-3000, ZHB-3000, ZHB-3000Z
4 Gate-type Brinell Hardness Tester HB-3000MS, HBM-3000E
Post time: Aug-25-2023
