After quenching and tempering, chromium has excellent mechanical properties and good hardenability, which makes it often used in the manufacture of high-strength fasteners, bearings, gears, and camshafts. Mechanical properties and hardness testing are very necessary for quenched and tempered 40Cr.
40Cr hardness testing usually uses Rockwell hardness test method and Brinell hardness test method for testing. Because Rockwell hardness tester is fast and convenient to use, it is usually preferred by customers. For small parts or parts requiring higher precision, Vickers hardness tester may also be used.
Usually, the Rockwell hardness of 40Cr after quenching and tempering is usually required to be between HRC32-36, so that it has higher strength and fatigue resistance.

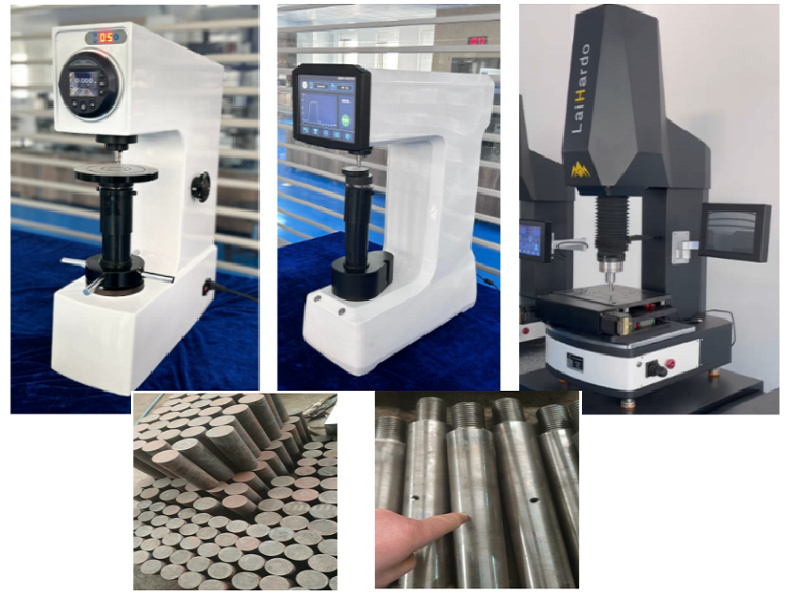

The following are several commonly used Rockwell hardness testers for reference:
1. Weight-added electric digital display Rockwell hardness tester: accurate, reliable, durable, and high test efficiency; the digital display can directly read the Rockwell hardness value, the mechanical structure is optimized, and other Rockwell scales can be optionally matched. It adopts electric automatic loading and unloading technology to eliminate human errors. The spindle system adopts a frictionless spindle structure to improve the accuracy of the initial test force
2. Touch screen digital display Rockwell hardness tester: eight-inch touch screen operation, simple and easy to operate interface; electronic loading test force, low failure rate, more accurate test, can independently store 500 sets of data, power off without data loss, in line with ISO, ASTM E18 and other standards.
3. Fully automatic Rockwell hardness tester: electronic loading test force is used to improve the force value accuracy, one-click to complete the entire hardness test process, simple and efficient; super large test platform, more suitable for hardness detection of large-scale work; equipped with a joystick to quickly drive the servo motor to adjust the test space; data can be transmitted to the computer via RS232, Bluetooth or USB.
