MP-2B Metallographic Sample Grinding Polishing Machine

Short Description:

The grinding and polishing machine is a double-disc machine, which can be operated by two people at the same time. It is suitable for pregrinding, grinding and polishing of metallographic samples. This machine through the frequency converter speed, can be directly obtained between 50~1000 RPM, so that the machine has a wider range of application. It is an essential equipment for users to make metallographic samples. The machine has a cooling device, which can be used to cool the sample during pregrinding, in order to prevent the damage of the metallographic structure of the sample due to overheating. This machine is easy to use, safe and reliable, is the ideal sample making equipment for factories, scientific research institutions and laboratories of colleges and universities.


Product Detail

Product Tags

Features and Application

1.Double-disc desktop, can be operated by two people simultaneously;
2.regulating speed by a frequency changer, with a speed of 50-1000rpm;
3.equipped with a cooling device, preventing the damage of the metallographic structure caused by overheat;
4.applicable to pre-grinding, grinding and polishing of metallographic samples;
5. easy to operate, safe and reliable, is an ideal equipment for the labs of plants, research institutes and universities and colleges.

Technical Parameter

Diameter of grinding disc 200mm (250mm can be customized)
Grinding Disc Rotating Speed 50-1000 rpm
Diameter of polishing disc 200mm
Polishing Disc Rotating Speed 50-1000 rpm
Working Voltage 220V/50Hz
Diameter of Abrasive Paper φ200mm
Motor YSS7124, 550W
Dimension 700×600×278mm
Weight 50KG

Configuration

Main Machine 1 PC Inlet Pipe 1 PC
Grinding Disc 1 PC Outlet Pipe 1 PC
Polishing Disc 1 PC Foundation Screw 4 PCS
Abrasive Paper 200mm  2 PCS Power Cable 1 PC
Polishing Cloth (velvet)200mm  2 PCS

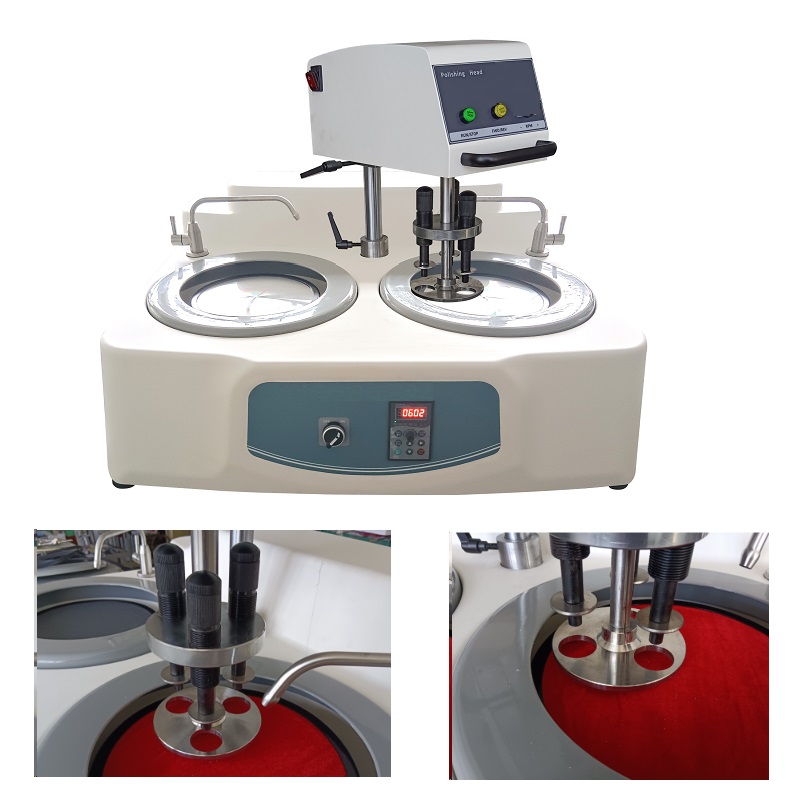

Details

With cabinet (optional):

Panel:

4



3
